FEATURED EQUIPMENT / DIESEL
800 kW CAT C27.
Unused. 2022 build. Under 10 run hours.

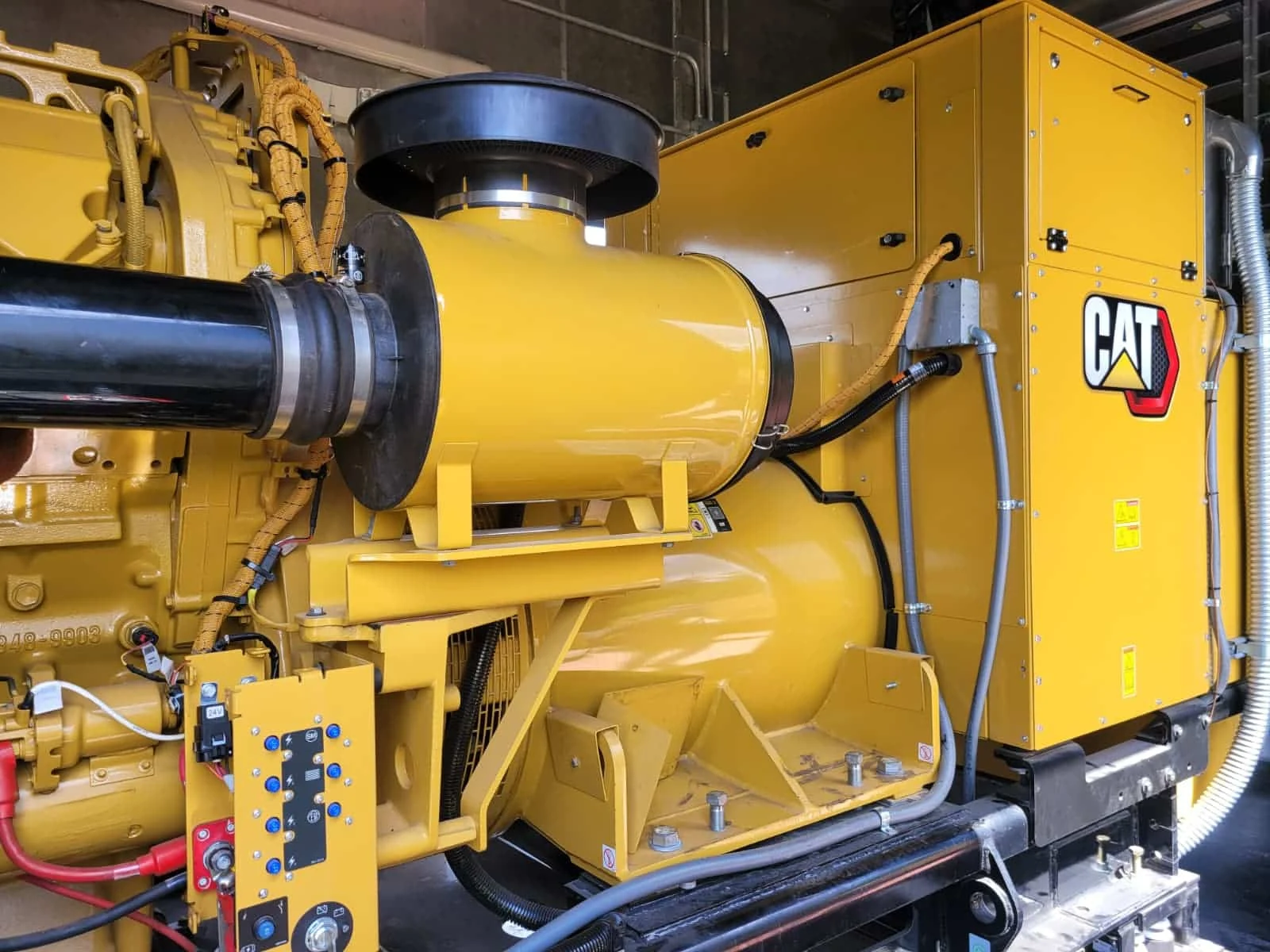

Enclosed diesel power with a CAT C27 engine, EMCP 4.3 controls and a 4,000+ gallon sub-base fuel tank. Rated 800 kW at 480/277 V, three-phase, 60 Hz.
Download sale sheet (PDF · 2.7 MB)THE SPECIFICATION
Ratings & build.
- Rated output
- 800 kW
- Engine
- CAT C27
- Voltage / phase
- 480/277 V · Three-phase
- Frequency / speed
- 60 Hz · 1,800 RPM
- Full-load current
- 1,203 A
- Fuel
- Diesel
- Build year
- 2022
- Condition / hours
- Unused · Under 10 run hours
- Emissions standard
- Tier 2
- Generator leads
- 12
- Overall length
- Approx. 35 ft
- Weight
- Approx. 14 tons
THE PACKAGE
Included equipment.
- Acoustic enclosure
- 4,000+ gallon sub-base fuel tank

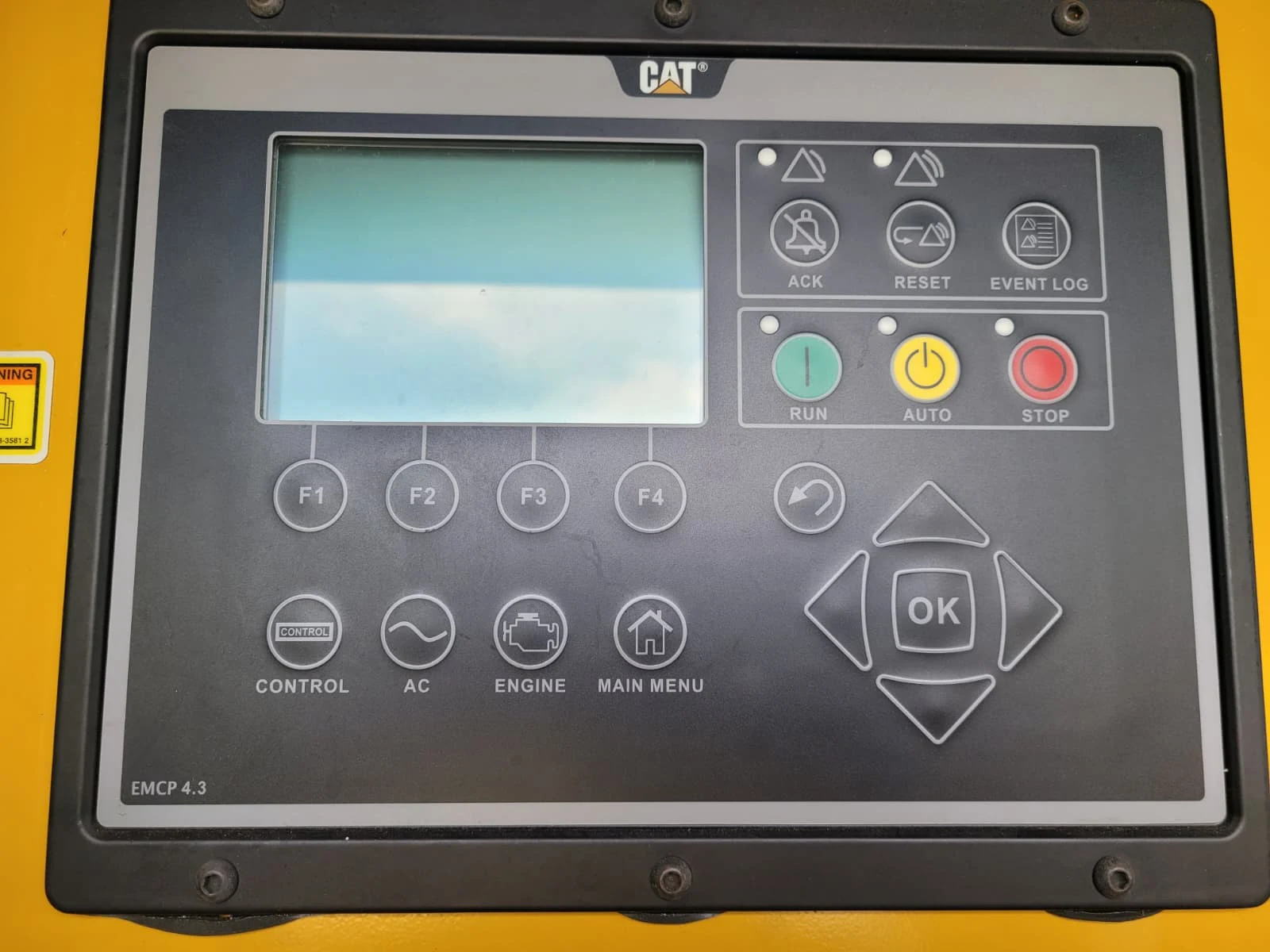

- EMCP 4.3 control panel
- 1,600 A frame power circuit breaker
- 100 A heavy-duty disconnect
- Dual battery chargers
- Cranking-battery auto-select module
- Coolant heater
- 5-gallon spill-containment reservoir
Confirm current availability, condition, final dimensions and shipping requirements with Dixiana Power. Pricing and commercial terms are provided by quote.
ASK DIXIANA POWER
Put this unit
on your project.
Send your delivery location and schedule for a quote.
